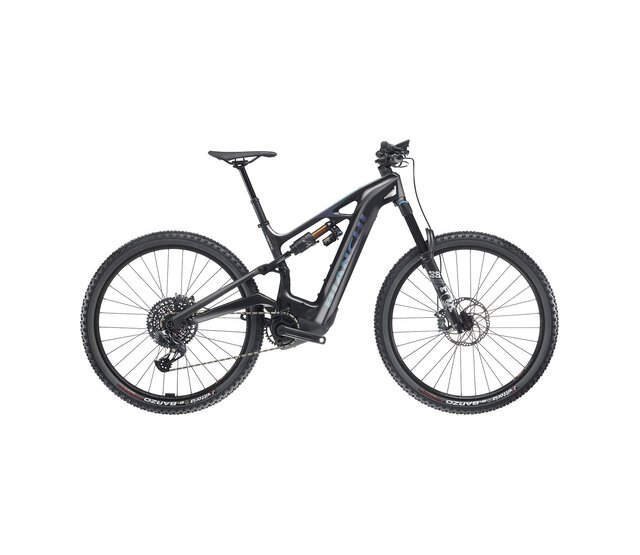

e-Vertic FX-Type Pro 2025

Tech specs

• Motor Unit

  1. Motor

     Bosch Performance Line CX, 250W, 85Nm, Kiox display

  2. Battery

     Bosch PowerTube 750Wh integrated battery

• Frameset

  1. Frame

     e-VERTIC FX-Type Pro - full carbon sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 160mm travel front & rear - Internal cable routing in steerer

  2. Fork

     RockShox ZEB 29", 160mm travel, 1.5" tapered HT, Maxle Ultimate 15x110mm BOOST axle, minimum 200mm rotor, maximum 220mm rotor, 44mm rake, 63mm crown, DebonAir

  3. RearShock

     RockShox Deluxe Select +, 230/65, DebonAir Progressive, Damer Type RT, Compression Tune L, Lockout Force 380, black finish tube, external rebound adjustment, Volume reducer 0 Neg 1 Pos

  4. Headset

     Acros AIX-545 1.8" top / 1.5" - internal cable routing

• Drivetrain

  1. Shifters

     Sram NX EAGLE 1x12

  2. Rear Derailleur

     Sram GX Eagle, 12sp

  3. Crankset

     FSA CK-320/IS/Gen4 FSA E-Bike Diecast Crankset ISIS / 165mm / Die cast aluminum Sram X-SYNC 2 Eagle Chainring, 34T

  4. Bottom Bracket

     included in the motor

  5. Chain

     Sram GX EAGLE, 12sp

• Brakes

  1. Brakes

     Magura MT Thirty

  2. Rotor

     Magura MDR-C Centerlock - 203 mm

• Wheels

  1. Wheels

     Velomann Tubeless Ready 29", 622x30, 32 hole

  2. RearHub

     Formula CL-1481, for Center Lock, 32h, 12x148mm TA

  3. FrontHub

     Formula CL-811 per fissaggio centrale, 32h, 15x110mm TA

  4. Tire

     Vittoria e-Barzo 29x2.6 XC-Trail TNT

• Cockpit

  1. Stem

     Velomann, 50mm, 35mm, 1"1/8

  2. Handlebar

     Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°

  3. Grips / Extensions

     T-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp

• Saddle

  1. Seatpost

     Velomann, diam.31,6mm, internal remote cable routing, 120mm/150mm travel - 120mm for size 43 - 150mm for sizes 48, 53

  2. Saddle

     Velomann Gnd Full-fit Start Up, carbon steel rail, 262x145
